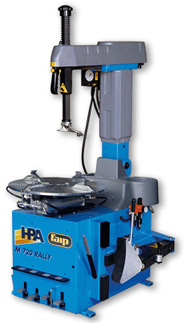

By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Mechanical balancing of tool-holder shaft. A travel roller under the horizontal operating arm minimizes the pull and push effort of the arm itself.

The self-centering chuck is able to clamp new-generation alloy rims from both the outside and the inside without damaging them, thanks to its special integral plastic guards supplied as standard.
Inflating nozzles, located on the sliding blocks, adapt automatically to diameter of rim.

The powerful bead breaker is operated by a double acting cylinder (D.186 mm. with drawn stainless steel barrel, designed to last a long time even under unfavorable conditions (such as humidity and poor lubrication). A special plastic blade guard, supplied as standard, protects the alloy rim during the bead-breaking operation.

*Technical data*
Self centering chuck opening Bead breaking power (blade)	10"÷20" (><) / 13" ÷23"(<>) 15.500 N (10 BAR)
Bead breaking power (cylinder)	32.200 N (10 BAR)
Bead breaking blade opening	320 mm. (STD) - 430 mm. (RACING)
Max. wheel diameter	1060 mm.
Wheel width	3" - 12"
Working pressure	10 BAR
Max. self centering torque	1000 Nm
Noise level when running	< 70 dB (A)
Motor (double polarity)	0. 9/1.2 Kw - 3 Ph - 400 V - 50 Hz
Weight	235 Kg.

*Supplied accessories*
Tire lever
Set of 4 plastic jaw pads
Filter pressure reducer unit
Cover for tire lever Two plastic inserts for tools head Plastic cover for blade
*Optional accessories*
Set of 4 motorcycle attachments	cod. 801258650
Kit of 6 covers for tire levers	cod. 801.246241
Kit of 6 bead breaker blade covers	cod. 801.258383

Dimensions

W=3"-12"
d2=10"-20"
d1=13"-23"
D=1060 mm max
