Tyre changer suitable for all car wheels, enables the user to mount and demount any type of tyre currently available on the international markets, without additional devices, from standard to sport tyres, from low profile tyres to special “run flat” ones like: Good-Year RunOnFlat, Pirelli Eufori@, Bridgestone RFT, Michelin ZP, Continental SSR, Dunlop DSST.
Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).
“IP system” (Increased Power system): speed rotation of the turntable automatically adjustable, the torque remains at the best ratio also at maximum speed (6 - 15 rpm).
Handy multipurpose control for easier “dynamic” bead breaking, independent or simultaneous, of both the tyre beads by means of its telescopic system with double disk.
New controlled penetration system gives effective bead breaking on the most difficult wheels (Patent Pending).
Ergonomic wheel lift, allows easy positioning of all wheels on the turntable (optional accessory).
Machine working height designed for perfect ergonomics with all kind of wheels: ideal for all operators.
*: Constant height (Reverse rim wheels excepted).
Tilting post with high torsional rigidity in all working positions for maximum rim protection during the work, above all in the general reinforcement of the machine’s structure. Tool-holder shaft is balanced and activated by means of an air-operated servocontrol with automatic head locking in the ideal working position . A roller under the horizontal operating arm minimises the effort of operators.
Pneumatically operated side-swing to locate the arm on the underside of the tyre.
The inflating device pedal, located at the side of the unit to prevent accidental activation. All machine movement controls are conveniently to hand for the operator and easy inspectable.
“KFS 28” is an advanced inflating device; with its variable diameter setting and the innovative “top-down-shot” grants a perfect and easy inflation of all type of tyres. Available on request.
“PH 28” Bead pressing accessory, enables the user to mount and demount the upper bead on the most difficult wheels. Available on request.
The same working movements in the demounting procedure, but absolutely no effort is required from the operator thanks to the
“LEVER-LESS” technology incorporated in the tools head
(Patent pending).
Simultaneous use of upper bead breaker (using as an extra bead presser) and the tools head for easier tyre mounting.
Super-automatic tyre changer suitable for all car, SUV, van and motorcycle wheels, enables the user to mount and demount any type of tyre.
Tools head with new profile to suit to new tyres and rims. Interchangeable plastic parts to protect the rims, during tyre demounting/mounting.

*Technical data*
Rim diameter (M 928 ROYAL)	12”÷28”
Rim diameter (M 928)	10”÷28
Max self-centering torque	1200 Nm
Self-centering ratation speed	6-15 r.p.m.
Max. wheel diameter	1080 mm.
Max. wheel width	15”
Working pressure	10 BAR
Max self-centering torque	1.200 Nm
Noise level when running	≤ 70 dB (A)
Motor (“IP” System)	0.75 kW - 50/60 Hz
Supply voltage	1 Ph - 200/230 V
Max. weight wheel	85 Kg.
Weight machine (with wheel lift)	400 Kg.

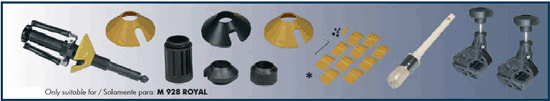

*Supplied accessories*

*Optional accessories*
Wheel Lifting Device
Air-operated bead pressing device
Complete tubeless tyre inflating set

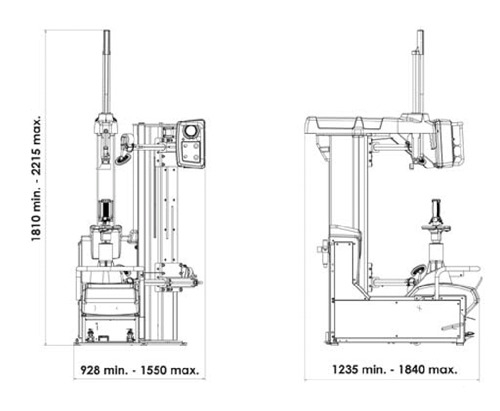

*Dimensions*
